인터피엔
본문 바로가기 주메뉴 바로가기
Environment Weather

공조시스템

HOME > 제품소개 > 공조시스템
페이지정보 : 5 / 12
제품 목록
Photo Model Standard Catalogue
TEK-PT1000 Sensor : Pt1000 EN 60751/B
Range : -50...70 °C
Accuracy : ± 0.3 °C (at 0 °C) 		PDF 다운로드

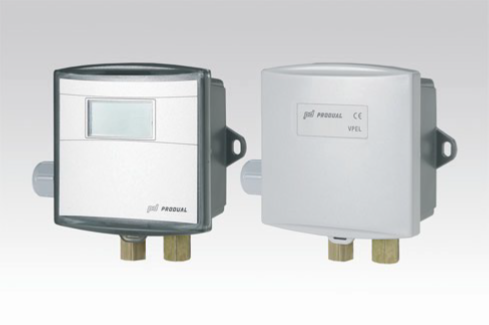

VPEL6.0 Range : 0…4.0 bar / 0…6.0 bar (= L/H)
Measuring error : < 2,5 % of full scale
Temperature drifting : < 0,5 % of full scale / 10 K 		PDF 다운로드
MMT330 Series 측정범위
- 오일수분 : 0…1aw
- 온도 : 40…+180℃

정확도
- 오일수분 : ±0.02℃ at 0…0.9aw
±0.03℃ at 0.9…1.0aw
출력
- Current output 0…20mA, 4…20mA
- Voltage output 0…1V, 0…5V, 0…10V
전원
- 10…35VDC,24VAC
with optional power supply module
100...240VAC 50/60Hz
 PDF 다운로드
HML 측정범위
-CO : 0…100ppm / 0…300ppm
정확도
- ±10ppm for < 70ppm values
- ±15% of value for > 70ppm values
전원공급
- 24VAC/DC
출력
- 0…10V / 4…20mA
 PDF 다운로드

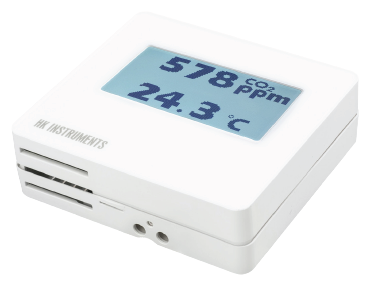

CDT2000 측정범위 : CO2_400~2000ppm / Temperature_0~50℃ / Relative humidity_0~90%
정확도 : CO2_±40ppm + 2% reading / Temperature_<0.5 ºC/ Relative humidity_±4 %
출력 : 0?10 V / 4?20 mA

실용적인 산업용 CO2 온습도센서(저가형)
HVAC(공조시스템)의 구축을 위해 설계
새로운 방식의 터치스크린 디스플레이 방식
 PDF 다운로드
처음페이지 1   2   3   4   5   6   7   8   9   10 마지막페이지
