| Photo | Model | Standard | Catalogue |
|---|---|---|---|
 |
SIRO |
Measurement ranges: CO2: 0-2000 ppm / 400-2000 ppm (selectable via jumper) VOC: CO₂eq: 400-2000 ppm TVOC ppm: 0-30.0 ppm TVOC ?g/m3: 0-10000 μg/m3 IAQ index: 1-5 (UBA rating) PM1/PM2.5/PM10: 0-50 μg/m³ / 0-500 μg/m³ (selectable via jumper) IAQ index: 1-5 (WHO rating) Temperature: 0-50 °C Relative humidity: 0-100 %rH Outputs: 4 outputs, have to select voltage or current Voltage outputs: 0-10 V 2-10 V / 0-5 V (optional, display or configuration tool (required) Current output: 4-20 mA (optional) |
 |
 |
SIRO-MOD |
Measurement ranges: CO2: 0-2000 ppm / 400-2000 ppm (selectable via jumper) VOC: CO₂eq: 400-2000 ppm TVOC ppm: 0-30.0 ppm TVOC ?g/m3: 0-10000 μg/m3 IAQ index: 1-5 (UBA rating) PM1/PM2.5/PM10: 0-50 μg/m³ / 0-500 μg/m³ (selectable via jumper) IAQ index: 1-5 (WHO rating) Temperature: 0-50 °C Relative humidity: 0-100 %rH Protocol: MODBUS over Serial Line Transmission Mode: RTU Interface: RS485 Byte format 11 bits (10 bits if parity none): Coding System: 8-bit binary Bits per Byte: 1 start bit 8 data bits, least significant bit sent first 1 bit for parity 1 stop bit Baud rate: selectable in configuration Modbus address: 1?247 addresses selectable in configuration menu |
|
 |
AM100 |
측정 범위 : PM2.5: 0~1,000 μg/m3 PM10: 0~1,000 μg/m3 일산화탄소: 0~100 ppm 이산화질소: 0~5 ppm 오존센서: 0~1000 ppb 온도: -40℃~80℃ / 습도: 0~99%RH 자외선지수: 0~15 UVI(290 ~ 390 nm) |
|
 |
TH-20IND |
측정범위 - 온도 : 0...90℃ - 습도 : 0…100%RH 정확도 - 온도 : ±0.2℃ - 습도 : ±2%RH 출력 - 아날로그출력 : 4...20mA - RS422 & RS485 전원 - 24VDC |
|
 |

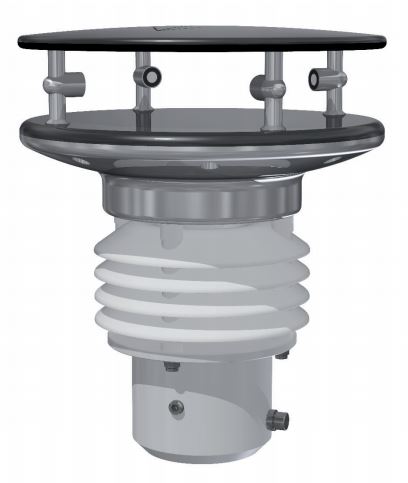

u[sonic]WS6 |
측정범위 - 풍향 : 0...359.9° - 풍속 : 0...65m/s - 습도 : 0...100%RH - 기압 : 300...1250hPa - 온도 : -40...70℃ 정확도 - 풍향 : < 2° - 풍속 : ± 0.2 m/s RMSE (v < 10 m/s); ± 2 % RMSE (10...65 m/s) - 습도 : typ. ± 1.5 % (0...80 %); ±2 % (80...100 %) - 기압 : ±0.4 hPa (900...1100 hPa, 25...40 °C),±0.5 hPa (300...1100 hPa, -20...65 °C) - 온도 : ±0.1 K (0...60 °C); ±0.2 K (-40...0 °C) > 2 m/s 인터페이스 RS485/RS422 |
|
